Description:

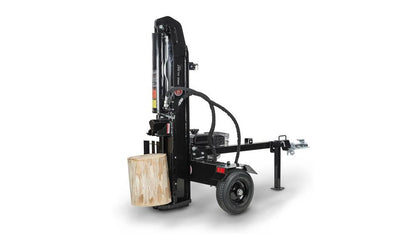

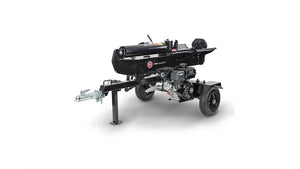

PRO XL34T (34-Ton)

Our most powerful horizontal-vertical model. Split the biggest logs in either horizontal or vertical position. Switch configurations in seconds without tools. Ball-hitch included for highway towing at up to 45 mph.

Dimensions

• Height: 35.4 in
• Length: 83.6 in
• Wedge Height: 7.94 in
• Wedge Width: 1-3"
• Weight: 549 lbs
• Width: 40.6 in

Engine

• Horsepower: 9.2 HP
• Make: DR
• Number Of Cylinders: 1

Fuel System

• Fuel Capacity: 1.6 gals
• Fuel Type: Gas

General

• Assembly: Some assembly required

Hydraulics

• Cylinder Size: 5" bore, 23.65" stroke
• Hydraulic Component Rating: 3500 psi
• Pump: 2 Stage, 13.0 gpm
• Reservoir: 5 gal

Wheels Tires

• Number of Tires: 2
• Tire Size: 16"

Warranty

• Engine Warranty: 2 years residential, 1 year commercial
• Machine Warranty: 2 years residential, 90 days commercial

Towing

• Hitch Type: 2" Ball
• Max Highway Speed: 45 mph
• Towable: Yes

Splitting

• Average Cycle Time: 16 secs
• Max Log Diameter: 30 in
• Max Log Length: 25 in
• Splitting Force: 34 tons

Specifications:

Engine Manufacturer: DR

General:

• Ram Pressure: 34 tons
• Log Capacity: 25 in.
• Cycle Time: 16 secs
• Oil Reservoir: 5 gal.
• Wheels: 16 in.

Width	Weight	Height	Length
40.5 Inch	549 Pounds	35.4 Inch	83.6 Inch
