Description:

Split big logs in either horizontal or vertical position (great for logs that are too heavy to lift). Switch configurations in seconds without tools. DR 6.6 HP engine, 12-second cycle time. Road-towable at speeds up to 45 mph.

Features:

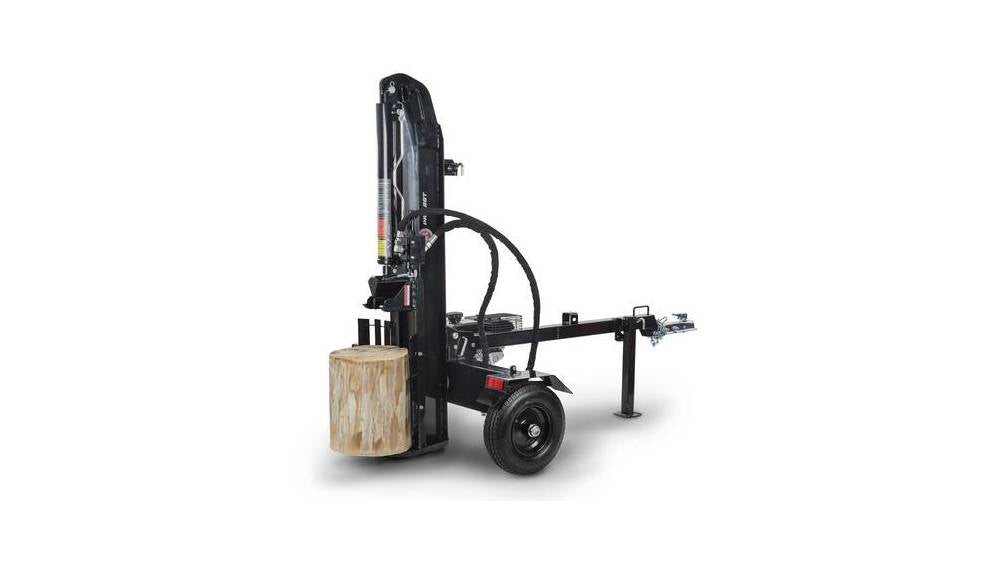

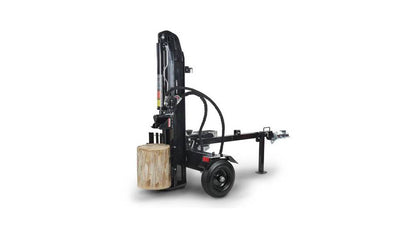

• Easy Conversion: Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Lets you split those really big rounds without lifting the log onto the beam.
• DR Engine: Easy-starting DR 6.2 HP engine powers the hydraulic pump. Warranted for 2 years in residential use (90 days commercial).
• Rugged Hydraulics: Hydraulic pump generates 3700 psi in the cylinder (4.1 in. bore). Steel piston compression seals provide consistent power...year after year.
• Easy Towing: A 2 in. ball hitch comes standard (with safety chains) allowing for road towing at speeds up to 45 mph. Durable, 16 in. DOT-approved tires. Jackstand folds up for transport.

Dimensions

• Height: 40.6 in.
• Length: 89.5 in.
• Shipping Weight: 530 lb.
• Wedge Height: 7 in.
• Weight: 530 lb.
• Width: 51.3 in.
• Shipping Dimensions: 71 in.L x 27 in.W x 20 in.H
• Working Height: 30 in.

Engine

• Air Filter: Dual Element
• Cooling Methods: Air
• Displacement: 223cc
• Engine Type: OHV
• Horsepower: 6.6 HP
• Lubrication: Splash
• Make: DR
• Number Of Cylinders: 1
• Oil Capacity: 16.9 oz
• Oil Type: SAE 30W HD
• RPM Speeds: 3600
• Starting Type: Manual

Fuel System

• Fuel Capacity: 0.8 gal.

General

• CARB Certified: Yes

Hydraulics

• Hydraulic Flow: 11 gpm
• Hydraulic Pressure: 4100 PSI MAX
• Pump: 2 stage / 11-13 gpm (max)
• Reservoir: 4 gal.

Wheel Tires

• Number of Tires: 2
• Tire Size: 16 in. x 4.8 in. Tube Tires
• Wheel: Steel Wheel with Taper Roller Bearings

Warranty

• Engine Warranty: 2 Year Residential, 1 Year Commercial
• Machine Warranty: 2 Year Residential, 90 Day Commercial

Towing

• Hitch Type: 2 in. Ball
• Max Highway Speed: 45 MPH
• Towable: Yes

Splitting

• Average Cycle Time: 12 Seconds
• Max Log Diameter: 30 in.
• Max Log Length: 24 in.
• Splitting Force: 28 ton
• Engine Type: OHV
• Engine Manufacturer: DR

Width	Weight	Height	Length
51.3 Inch	530 Pounds	40.6 Inch	89.5 Inch
